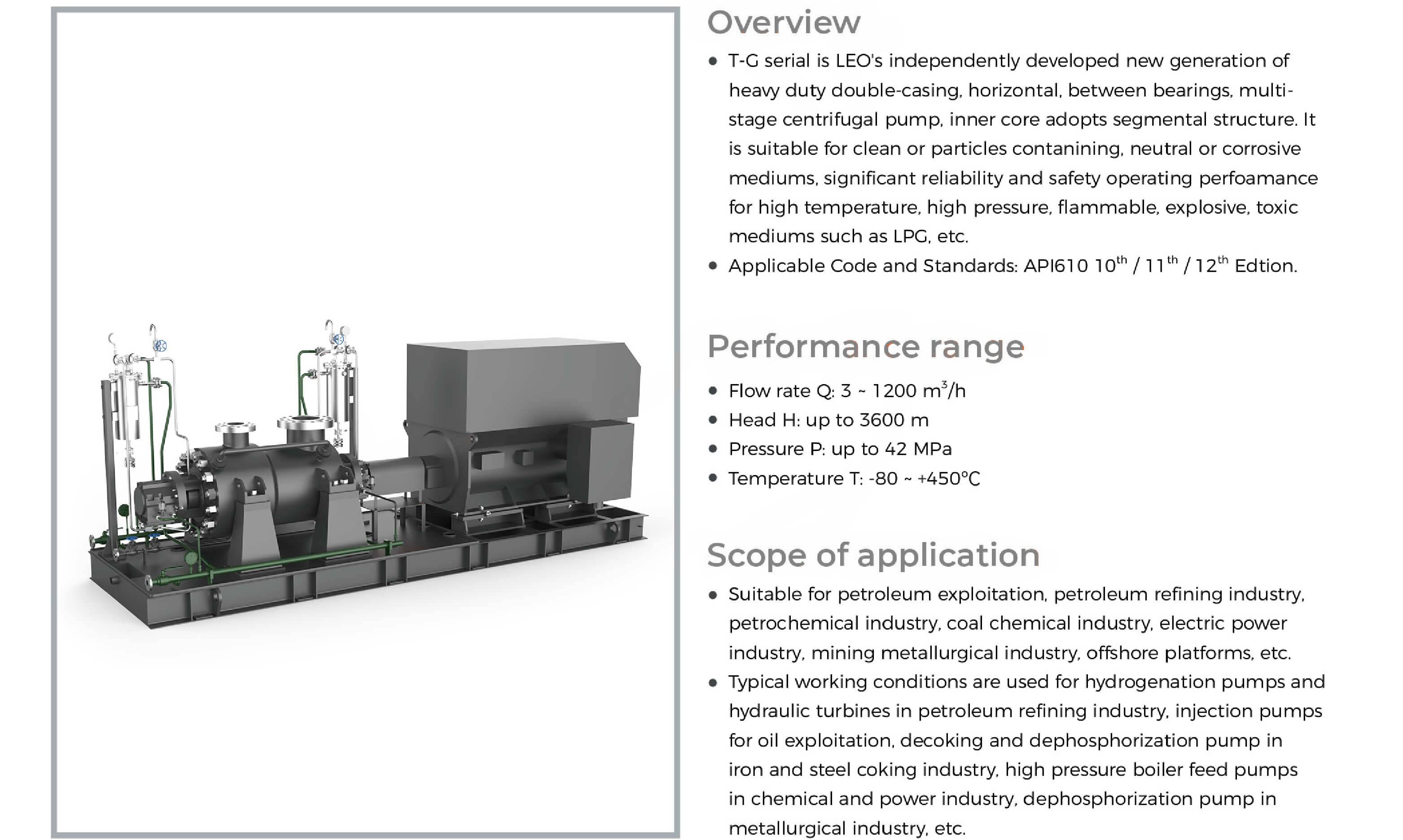

HIT-G T Horizontal Double Casing Multistage Centrifugal Pump

Application

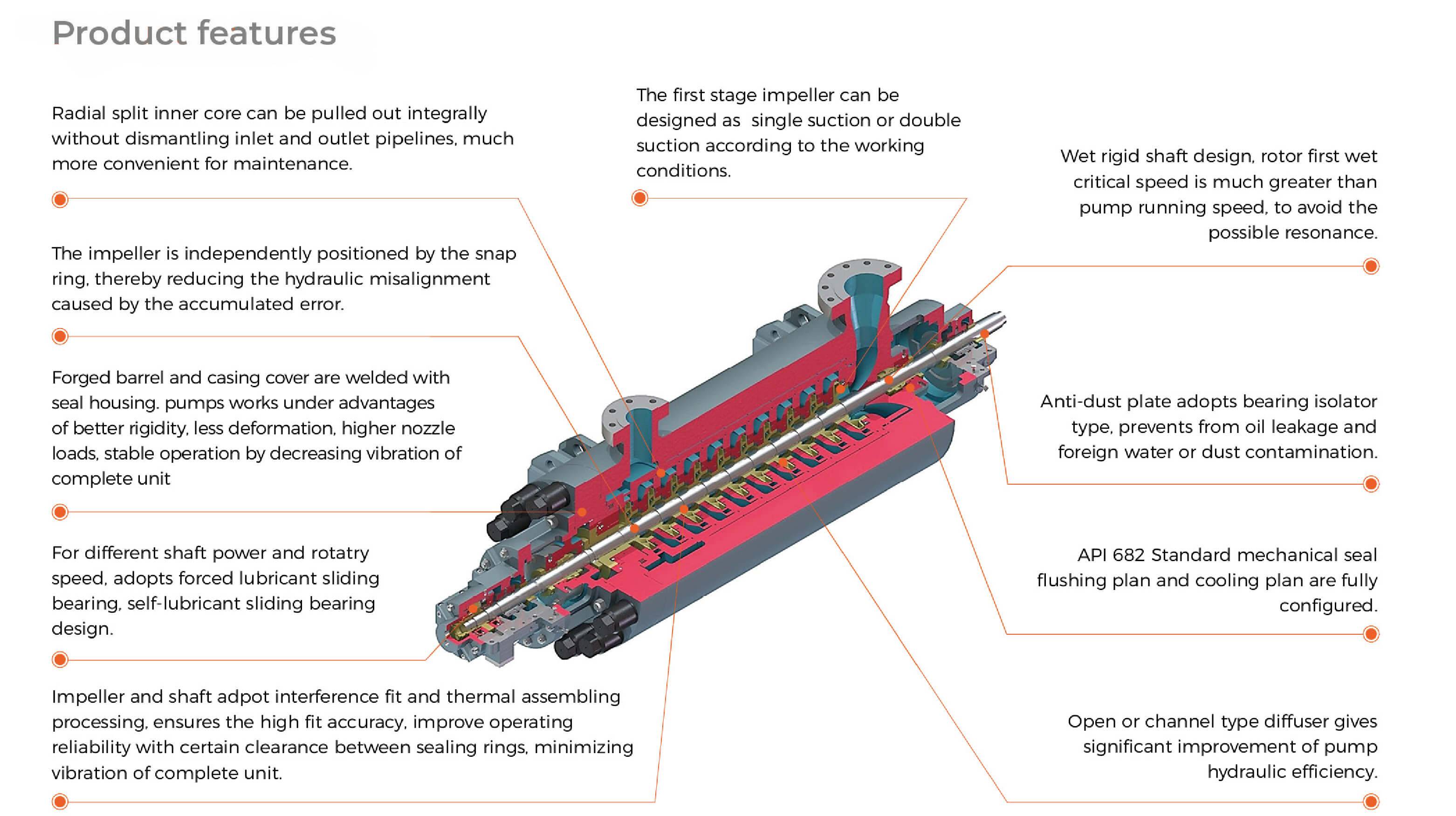

T-G series pump is a new generation of heavy load double-casing horizontal multistage centrifugal pump independently developed by our company, the inner core of the pump adopts segmental structure and is supported by both ends. Used for pumping all kinds of clean or particle, neutral or corrosive medium, especially for LPG, flammable, toxic, high temperature, high pressure liquid.
Flow Q：3~1200m3/h
Pressure P：42.0MPa
Head H：3600m
Temperature T：-80~+450℃
